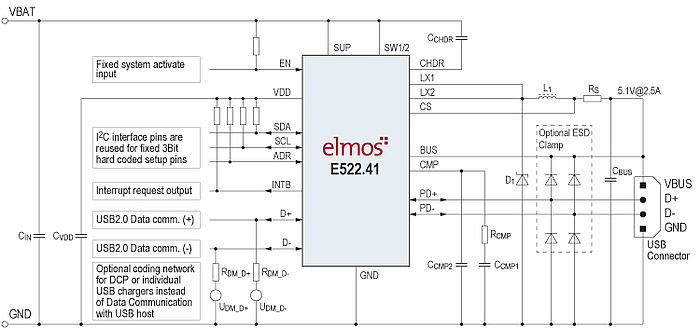

Automotive USB 2.0 Supply with Data Line Protection and I²C Interface | E522.41

Our DC DC Converter family contains all the functions needed to create a wide range switch power supply with several output voltages, whereby the supply voltages can be lower or higher than the output voltages.

With Elmos’s switching regulator families, developed in high-voltage CMOS technology, the smooth transition between the different electrical system voltages (14V, 28V, 42V) in the vehicle is facilitated. The small quiescent current and the wide operating voltage and temperature range mean that the components are also of interest in a variety of other applications.

DC/DC Converter Automotive

Part-No. / Function Recommended IMAX Efficiency VOUT VSUPPLY Package Comment
E522.01
Low Quiescent Current Step Down Converter (5V/500mA)

500mA

>90%

5V

4.5V to 40V

QFN20L4*
TSSOP16
  • Idle current of 12μA typ.
  • Sleep current of 8μA typ.
  • Input voltage up to 40V
  • Up to 100% duty cycle
  • Undervoltage lockout
E522.02
Low Quiescent Current Step Down Converter (3.3V/500mA)

500mA

>90%

3.3V

4.5V to 40V

QFN20L4*
TSSOP16
  • Idle current of 12μA typ.
  • Sleep current of 8μA typ.
  • Input voltage up to 40V
  • Up to 100% duty cycle
  • Undervoltage lockout
E522.03
Low Quiescent Current Step Down Converter (5V/350mA)

350mA

>90%

5V

4.5V to 40V

QFN20L4*
TSSOP16
  • Idle current of 12μA typ.
  • Sleep current of 8μA typ.
  • Input voltage up to 40V
  • Up to 100% duty cycle
  • Undervoltage lockout
E522.04
Low Quiescent Current Step Down Converter (3.3V/350mA)

350mA

>90%

3.3V

4.5V to 40V

QFN20L4*
TSSOP16
  • Idle current of 12μA typ.
  • Sleep current of 8μA typ.
  • Input voltage up to 40V
  • Up to 100% duty cycle
  • Undervoltage lockout
E522.05
Low Quiescent Current Step Down Converter (Adjustable Voltage/500mA)

500mA

>90%

1.5V to 40V

4.5V to 40V

QFN20L4*
TSSOP16
  • Idle current of 12μA typ.
  • Sleep current of 8μA typ.
  • Input voltage up to 40V
  • Up to 100% duty cycle
  • Undervoltage lockout
E522.06
Low Quiescent Current Step Down Converter (Adjustable Voltage/350mA)

350mA

>90%

1.5V to 40V

4.3V to 40V

QFN20L4*
TSSOP16
  • Idle current of 12μA typ.
  • Sleep current of 8μA typ.
  • Input voltage up to 40V
  • Up to 100% duty cycle
  • Undervoltage lockout
E522.10
Low Quiescent Current Step Down Converter

2000mA

>90%

Adjustable with
200 / 800mV Vref

3.8V to 40V

QFN20L4 *)
SOIC8-EP
  • Idle current of 15µA typ.
  • Sleep current of 10µA typ.
  • Input voltage up to 40V
  • Up to 100% duty cycle
  • Undervoltage lockout
E522.31
1 Channel Switched- Mode Constant Current LED Controller

-

>90%

up to 80V

5V to 55V

QFN32L5
  • DC/DC Boost, SEPIC, Buck-Boost or Buck
  • incl.: charge pump for reverse poliariy and HS Switch
E522.32
2 Channel Switched- Mode Constant Current LED Controller

-

>90%

up to 80V

5V to 55V

QFN32L5
  • DC/DC Boost, SEPIC, Buck-Boost or Buck
  • incl.: charge pump for reverse poliariy and HS Switch
E522.41
Automotive USB 2.0 Supply with Data Line Protection and I²C Interface

2500mA

>90%

5V

6V to 32V (tran. 42V)

QFN20L5
  • Fixed frequency 250kHz..2MHz ± 25% synchronizable
  • Fixed 5V ±3% USB Bus voltage with seven programmable negative resistance adjustments
  • SDP, BC 1.2 CDP, DCP individual USB charging modes
E522.43
Automotive USB 2.0 Supply with Data Line Protection and I²C Interface

2500mA

>90%

5V

6V to 32V (tran. 42V)

QFN20L5
  • Fixed frequency 250kHz..2MHz ± 25% synchronizable
  • Fixed 5V ±3% USB Bus voltage with seven programmable negative resistance adjustments
  • SDP, BC 1.2 CDP, DCP individual USB charging modes
