LIN SBC with Voltage Regulator | E521.25

Description

The LIN-SBC with voltage regulator provides beside the LIN transceiver the peripheral supply, reset generation for the µC and fail-save system.

The LIN SBC can be switched into standby- and sleep-mode which provides very low... read more

Features

  • LIN transceiver, V 2.1, V2.2 SAE-J2602, ISO9141
  • Operating range VS 5V up to 28V
  • Limited functional range 3.8V up to 40V
  • Typ. 10µA sleep current consumption
  • Very low BUS leakage current
  • Reset generation
  • µC window watchdog
  • Internal 1:6 Voltage Divider for VBAT Sensing
  • 3.3V (2%) in active mode, (5%) in standby mode
  • VDD switched off in sleep mode
  • peripheral supply up to 100mA
  • on chip overtemperature protection
  • BUS pin ESD-protected ±8kV according to IEC- 61000-4-2
  • Very good EMC performance (OEM requirements fulfilled)
  • Package QFN20L5

Documentation

Free Download

File Description Type
Info Sheet PDF 141 kB

On Request

File Description
E521.25 | Data Sheet

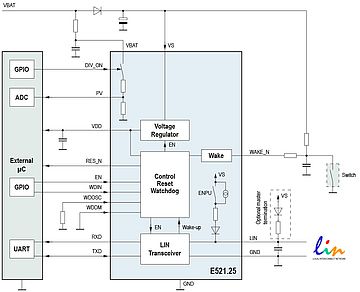

Application Diagram

Applications

  • Smart applications connected to the LIN bus

Ordering Information

Distributor Inventory Search
Buy our Products at your local Distributor
Please note that you are leaving the Elmos website with this link.


Samples

Part No. TJUNC Range Package Order No.
E521.25 -40°C to +105°C QFN20L5 E52125A62CXX2
