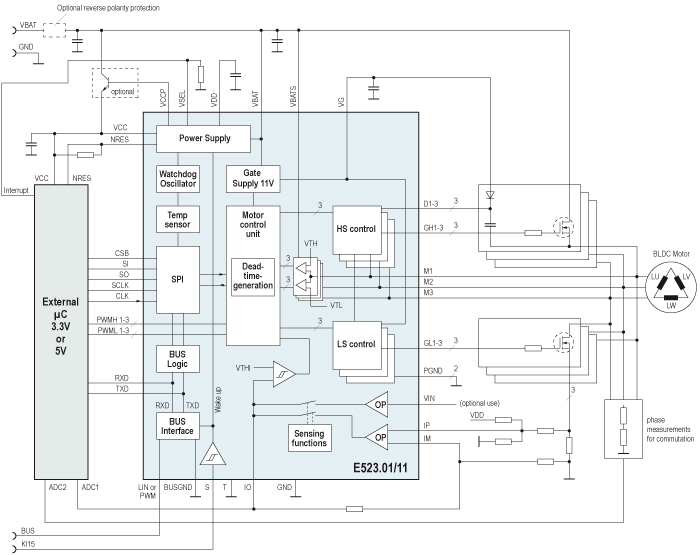

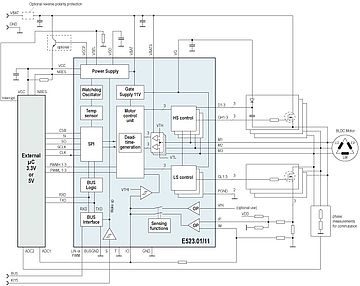

B6 Bridge FET Driver (LIN/PWM Interface) | E523.01 (*SBC)

BLDC Motor BLDC Motor Driver

Part-No. / Function Interface VSUPPLY IPEAK P(Motor) peak RDSON Package Comment
E523.01 (*SBC)
B6 Bridge FET Driver (LIN/PWM Interface)
  • LIN 2.x (1.3 comp.),
    SAE-J2602(only E523.01) or
  • PWM bidirectional
  • LIN Flash update

7V to 28V (5V to 42V)

6 channel

≈1.5kW (external FETs)
≈3W (direct drive)

8Ω (HS)
4Ω (LS)

QFN44L7
QSOP44
  • Voltage Regulator (3.3V/5V) selectable
  • Precise deadtime generation
  • Watchdog/Diagnostics
  • TJunc peak = +170°C
  • Demo software on request (sensorless sinus)

Motor Control DC Motor

Part-No. / Function Interface VSUPPLY IPEAK P(Motor) max RDSON Package Comment
E523.05 (*SoC / *Plug & Play)
DC 2x Half-Bridge Controller with 16bit CPU (LIN / PWM Interface)
  • LIN 2.x (1.3 comp.),
    SAE-J2602 or
    PWM bidirectional
  • SPI for configuration
  • LIN Flash update
  • JTAG

7V to 28V (5V to 42V)

6 channel

≈1.5kW
(external FETs)

≈3W
(direct drive)

8Ω (HS)
4Ω (LS)

QFN48L7
  • 16bit/48 MHzCPU assisted by 2 powerful co-processors
  • Library ROM for LIN-stack software update via LIN
  • Charge Pump Driver included
  • TJunc peak = +125°C
    (Contact supplier for higher temperature)
E523.06 (*SoC)
Field-Oriented DC Motor Controller with 16 Bit CPU
  • LIN 2.x (1.3 comp.),
    SAE-J2602 or
    PWM bidirectional
  • SPI for configuration
  • LIN Flash update
  • JTAG

7V to 28V (5V to 42V)

6x ±400mA

≈1.5kW (external FETs)
≈1.3W (direct drive)

8Ω (HS)
4Ω (LS)

QFN48L7
  • 16bit/48 MHzCPU assisted by 2 powerful co-processors
  • Library ROM for LIN-stack software update via LIN
  • Charge Pump Driver included
  • TJunc peak = +125°C
    (Contact supplier for higher temperature)

BLDC Motor BLDC Motor Controller

Part-No. / Function Interface VSUPPLY IPEAK P(Motor) peak RDSON Package Comment
E523.05 (*SoC)
BLDC Motor Controller with 16bit CPU (LIN/PWM Interface)
  • LIN 2.x (1.3 comp.),
    SAE-J2602 or
    PWM bidirectional
  • SPI for expansion
  • LIN Flash update
  • JTAG

7V to 28V (5V to 42V)

6 channel

≈1.5kW (external FETs)
≈3W (direct drive)

8Ω (HS)
4Ω (LS)

QFN48L7
  • For new designs E523.06 is recommended
  • 16bit / 48 MHzCPU assisted by 2 powerful co-processors
  • Library ROM for LIN-stack, software update via LIN
  • Software support on request
  • TJunc peak = +125°C (contact supplier for higher temperature)
E523.06 (*SoC)
Field-Oriented BLDC Motor Controller with 16 Bit CPU
  • LIN 2.x (1.3 comp.),
    SAE-J2602 or
    PWM bidirectional
  • SPI for expansion
  • LIN Flash update
  • JTAG

7V to 28V (5V to 42V)

6 channel

≈1.5kW (external FETs)
≈3W (direct drive)

8Ω (HS)
4Ω (LS)

QFN48L7
LQFP48L7EP
  • 16bit / 48 MHzCPU assisted by 2 powerful co-processors
  • Library ROM for LIN-stack, software update via LIN
  • Software support on request
  • TJunc peak = +125°C (contact supplier for higher temperature)
  • Plug & Play:
    Demosoftware for
    - sensorless HVAC fan,
      engine cooling fan
    - field oriented control (FOC)
      for pumps
E523.52 (*SoC)
72V Brushless Motor Gate Driver with 16bit CPU
  • LIN Interface with external LIN transceiver
  • PWM Interface with external components
  • SPI for user expansion
  • LIN Flash update
  • JTAG

12V to 72V (7V to 76V)

6 channel

≈1.5kW (external FETs)

10Ω (HS)
5Ω (LS)

QFN36L7
  • Usable for 24/48V automotive Board Net
  • 16bit/48 MHz CPU assisted by 2 powerful co-processors
  • Library ROM for LIN-stack software update via LIN (software support on request)
  • TJunc peak = +150°C
E533.06 (*SoC)
3phase BLDC Motor Controller with 32bit Arm® Cortex® M4
  • LIN/PWM interface integrated on chip
  • LIN 2.x compliant to ISO17987 and SAE-J2602
  • User-configurable GPIOs including SPI, UART, analog input and ARM-SWD IF

7V-27.5V
(5.5V-28V limited; 40V load dump)

3phase
Gate Driver

≈1.5kW
(depends on external FETs)

n.a.

QFN48L7
LQFP48L7EP
  • High performance BLDC Controller
  • 40MHz ARM® Cortex®-M4 with 96kB Flash
  • SysROM including Bootloader and LIN Stack
  • Optimized for FOC operation
  • MotCoS ready
