Description

The Eight Channel Squib Driver ASSP E981.21 is designed spe-cifically for automotive airbag applications. The IC provides individual control and diagnostics for 8 floating squibs. It has two sources of control, an arming... read more

Features

  • Two squib current modes (LCM and HCM) selectable via SPI commands
  • Simultaneously firing of 4 loops possible
  • Squib channel diagnostics, monitoring and current counter
  • Autarky voltage & squib supply voltage diagnostics
  • Separate low side and high side driver control
  • Serial interface (SPI synchronous communication) to μC (3.3V and 5V tolerant inputs)

Documentation

Free Download

File Description Type
Info Sheet PDF 149 kB

On Request

File Description
E981.21 | Data Sheet

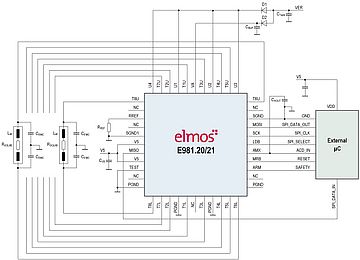

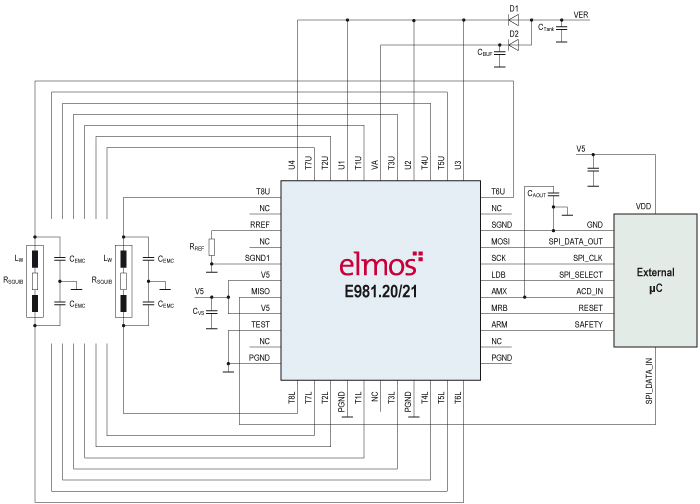

Application Diagram

Applications

  • Squib driver in a Restraint Diagnostic and control Module (RDM)

Ordering Information

Distributor Inventory Search
Buy our Products at your local Distributor
Please note that you are leaving the Elmos website with this link.


Samples

Part No. Temp. Range Package Order No.
E981.21 -40°C to +95°C QFN44L7 E98121A39B
